Xilinx Zynq UltraScale+ MPSoC XCZU5EV FPGA Development Board

XCZU5EV

  • Model

    AXU5EVB-P
  • Email

    David.ding@alinx.com
  • Ean

    6971390275955

Notice for purchase:

This series of development boards include AXU5EV-P and AXU5EVB-P

Only the Ethernet interface chips of the expansion board are different, and the functions are the same.

The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.


Xilinx Zynq UltraScale + MPSoC FPGA Board

Support XILINX Vitis-AI DPU, Support PCIe 3.0 x2, Support 10G Optical Fiber Communication Integrated, H.264 / H.265 Video Codec

Satisfy Network Communication, High-Speed Data Exchange and Storage Industrial Control, Deep Learning, AI Intelligence, Cloud Computing, 4K Video Transmission Processing, and Aerospace Applications

  • ·ARM CPU

    Quad Core ARM CORTEX-A53 + Dual Core  ARM CORTEX-R5

  • ·GPU

    Mali™-400 MP2 GPU

  • ·5GB DDR4

    PS 4GB DDR4; PL 1GB DDR4

  • ·FLASH RAM

    8GB eMMC FLASH; 256Mbit QSPI FLASH


    Techinal Support

    Development Software Version:Vitis 2020.1 Linux Version: petalinux 5.4.0-xilinx-v2020.1All Doucments Saved in Dropbox, after buy the board, email to get it.

    Course S0 Development Environment
    01. Vitis Installation
    02. Install virtual machine and Ubuntu system
    03. Install Linux version of Vitis software on Ubuntu
    04.Petalinux tool installation


    05. NFS service software installation
    06. QT Creator development environment
    07. Linux Common Commands
    Remark: Vitis 2020.1

    Course S1 FPGA Experiment Tutorial
    01. Introduction to Ultrascale+ MPSoC
    02. FPGA Board Hardware Introduction
    03. Introduction to Verilog basic modules
    04. PL's "Hello World" LED experiment
    05. PLL Experiment Under Vivado
    06. FPGA on-chip RAM read and write test experiment
    07. FPGA on-chip ROM read and write test experiment
    08. FPGA on-chip FIFO read and write test experiment

    09. Key Experiment in Vivado
    10. PWM Breathing Light Experiment
    11. UART Experiment
    12. RS485 Experiment
    13. PL side DDR4 read and write test
    14.  HDMI Output Experiment
    15. HDMI Character Display Experiment
    16. HDMI pass-through ILA Debugging Experiment
    17. GTX Transceiver Bit Error Rate Test IBERT Experiment 226 experiment

    Course S2 SDK Experiment Tutorial
    01. Experience ARM, bare metal output "Hello World"
    02. PS RTC Interrupt Experiment
    03. PS MIO Experiment
    04. PS Side UART Read and Write Control
    05. PS Side Use of CAN
    06. PS Side Use of I2C
    07. PS Side Use of Display Port
    08. PS Side SD Card Read and Write
    09. PS Side Use of Ethernet (LWIP)
    10. PS Side Remote Update QSPI Flash by Ethernet
    11. Use of System Monitor
    12. PS Side Use of EMIO
    13. PL Side Use of AXI GPIO

    14. PL Side RS485 Test
    15. PL Side Use of Ethernet
    16. Custom IP experiment
    17. Use of Dual Core AMP
    18. Use of “Free RTOS” under ZYNQ
    19. PL Read and Write PS DDR Data
    20. Realize PS and PL Data Interaction through BRAM
    21. Use VDMA to drive HDMI display
    22. Use VDMA to Drive HDMI Acquisition and Display
    23. MIPI Acquisition and DP Display Based on AN5641 Module
    24. MIPI Acquisition and HDMI Display Based on AN5641
    25. PCIe Test

    Course S3 Linux Basic Tutorial
    01. Customizing Linux with Petalinux
    02. Program hello world
    03. gpio Control LED
    04. Add Boot Scripts and User Files
    05. SD Card Root File System


    06. QT and OPENCV Cross-Compilation Environment
    07. Use Vitis to Develop Linux Programs
    08. Vitis Accelerates Basic Platform Creation
    09. NVMe SSD operation under Linux
     Remark: Linux Version petalinux 5.4.0-xilinx-v2020.1

    Course S4 Linux Driver Tutorial
    01. Character Device
    02. A New Way of Writing Character Devices
    03. Device Tree and of Function
    04. Pinctrl and gpio Subsystem
    05. Concurrent Processing
    06. Gpio input
    07. Timer
    08. Interrupt
    09. Blocking IO
    10. Non-Blocking IO
    11. Asynchronous IO
    12. Platform


    13. Platform and Device Tree
    14. MISC device driver
    15. Input Subsystem
    16. Pwm Drive
    17. I2C Driver 18. USB Driver
    19. SPI Drive
    20. Uart Driver
    21. Block Device Driver
    22. NIC driver
    23. DMA Driver
    24. Multi-touch screen driver
    25. LCD Drive

    Course S5 Linux Application Development Tutorial
    01. Building a Minimalist Working Environment
    02. Hello World with Remote Debugging
    03. OpenCV Edge Detection
    04. OpenCV+Qt Face Detection


    05. GStreamer's Camera Display
    06. Qt+DRM+Gstreamer Camera Display
    07. Qt+GPU Camera Display
    08. Linux Register Operation

    Course_S6_HSL Tutorial Tutorial
    01. Getting to Know Vitis HLS
    02. Getting Started
    03. HLS Interacts with CPU Registers
    04. How to use the built-in Functions in the xfopencv Library
    05. Image RGB to Grayscale Conversion
    06. Image RGB to YCrCb


    07. Image Morphological Filtering
    08. Image overlay
    09. Image Contrast Adjustment
    10. Corner Detection
    11. SOBEL operator realizes edge detection
    12. Canny Operator Realizes Edge Detection
    13. How to Implement opencv Simulation with vitis HLS

    Course Vitis-AI Basic
    01. Docker Environment Construction
    02. Vitis-AI Development Process


    03. Neural Network Training based on Keras Framework
    04. Debugging Tools

    H.264 / H.265 Codec
    01. Environment Construction
    02. Preparation for Program Operation


    03. Video codec

    key Features

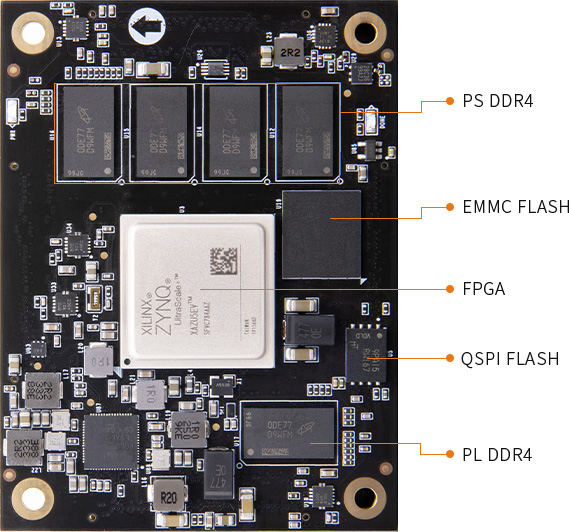

    ·Core Board SOM


    *Core Board, Click to Buy >>



    ·FPGA Board



    PRODUCT PARAMETERS

    Board Parameter Comparison

    FPGA Board

    ACU5EV

    FPGA Chip

    XCZU5EV- 2SFVC784I

    Processor Core

    ARM Cortex™-A53 x 4, Main Frequency 1.333GHz ; ARM Cortex™-R5 x 2, 533MHz

    RAM

    PS 4GB DDR4, 64bit, 2400Mbps
    PL 1GB DDR4, 16bit, 2400Mbps

    Speed Grades

    -2

    Chip Level

    Industrial Grade

    Chip Working Temperature

    -40°c~85°c

    Logic Cells

    256K

    CLB Flip-Flops

    234K

    Look Up Tables (LUTs)

    117K

    Block RAM

    5.1Mb

    DSP Slices

    1248

    eMMC FLASH

    8GB

    QSPI FLASH

    256Mbit

    Video Codec

    H.264 / H.265

    PL PCIe Gen3

    4

    Transceiver

    12.5Gb/s x4

    HP I / O

    96

    HD I / O

    84

    Interface and Function

    DDR4

    PS DDR4, 4 Pieces of 1G DDR4, 4GB Total, 64bit, Data Speed 2400Mbps
    PL DDR4, 1 Piece of 1G DDR4, 16bit, Data Speed 2400Mbps

    QSPI Flash

    256 Mbit QSPI Flash, Used as FPGA User Data Storage

    EMMC Flash

    8GB, Used as Large-Capacity Storage System

    DP Interface

    Mini Display Port up to 4K@30Hz or 1080P@60Hz Output (ALINX customized DP to HDMI cable, need to buy Separately )

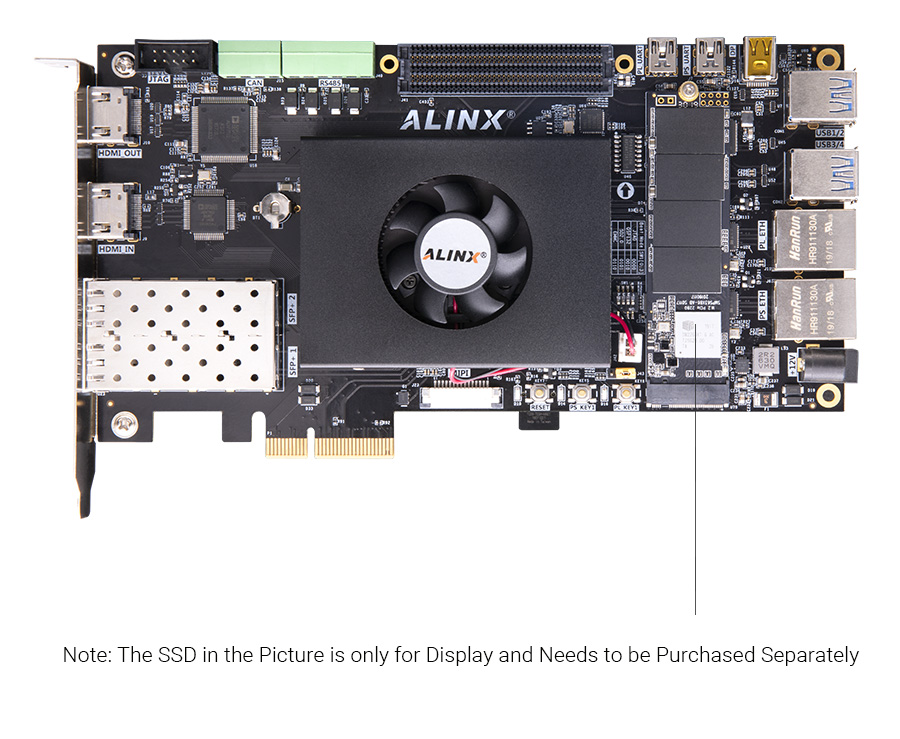

    M.2 Interface

    Used to Connect the M.2 SSD Solid State Drive ( Need to Buy it Yourself )

    MIPI Interface

    Used to Connect ALINX MIPI Interface OV5640 Camera Module AN5641

    SFP Interface x2

    Data Communication Receiving and Transmitting Speed up to 12.5Gb/s

    HDMI Input

    Support 1080P@60Hz Input, Data input in Different Formats

    HDMI Output

    Support 1080P@60Hz, 3D Output

    PCIe x2 Interface

    Support PCI Express 3.0 Standard ( Compatible 2.0 ), Speed up to 8GBaud

    USB 3.0 x4

    Used to Connect External USB Peripherals

    USB Uart x2

    Used for Serial Communication with PC or External Devices

    Gigabit Ethernet

    Two 10/100/1000M Ethernet with RJ-45 Interfaces for Data Exchange

    Crystal Oscillator

    33.333MHz Provide for the PS system 200MHz Provide DDR Reference Clock for the PL Logic

    RS485 Bus Interface x2

    Used for 485 communication Service

    CAN Bus Interface x2

    Used for CAN Communication Service

    JTAG

    10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

    EEPROM

    EEPROM 24LC04 with IIC Interface On-Board

    FMC Expansion Ports

    Standard FMC LPC Expansion PortCan be Connect with Various XILINX or ALINX FMC Modules ( HDMI Input/Output Module, Binocular Camera Module, Hight Speed AD Module )

    Temperature Sensor

    Sensor Chip LM75, Used to Detect the Ambient Temperature

    Real Time Clock

    RTC with a Battery Holder, The Battery Model is CR1220

    SD Card Slot

    1 Micro SD Card Slot, Support SD Mode and SPI Mode

    LED

    5 LEDs, 3 LED in the Core Board, 2 LEDs in the Carrier Board

    KEYs

    3 KEYs, 1 Reset KEY, 2 User KEYs

    Power Supply Parameters

    Voltage Input

    +12 V DC

    Current Input

    Max. Current 3A

    包装清单

    FPGA Board

    1

    Heat Sink (Fixed on the Board)

    1

    Mini USB Cable

    1

    USB Downloader Cable

    1 Set

    12V Power Adapter

    1

    PCIe Fence

    1

    TF Card

    1

    Card Reader

    1

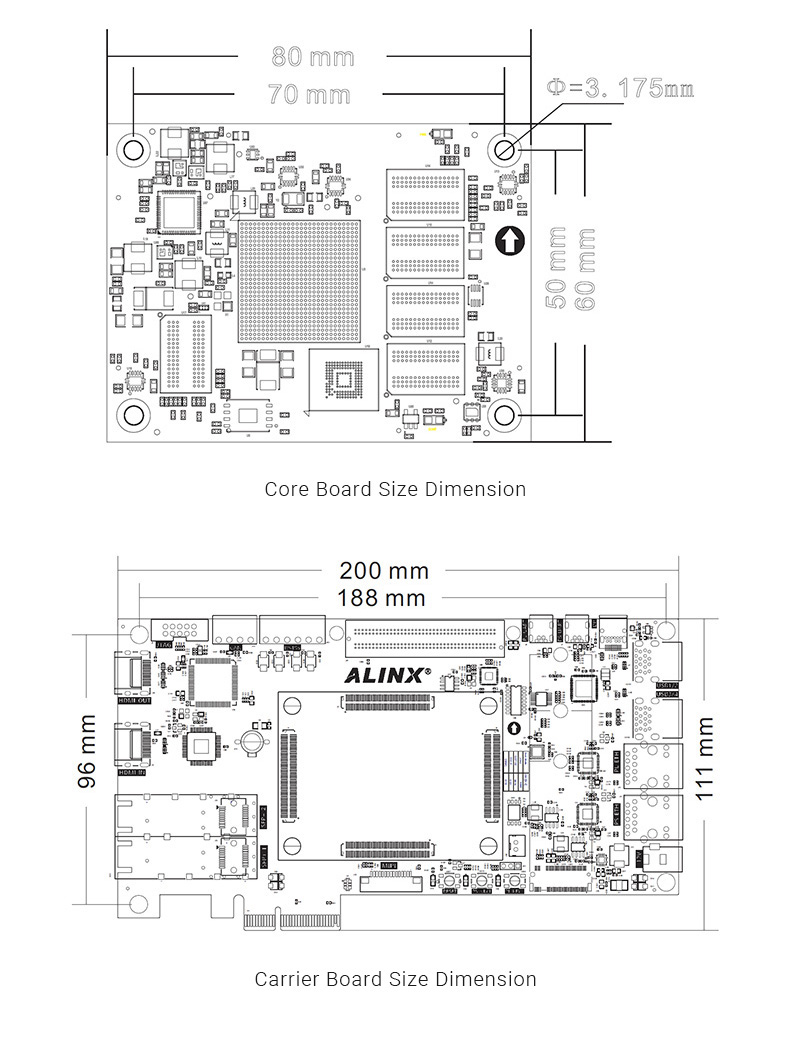

    Structure Size

    Size Dimension

    Core Board 3.15 inch x 2.36 inch, Carrier Board 7.87 inch x 4.37 inch

    Number of Layers

    16-Layer Core Board PCB, 8-Layer Carrier Board PCB Reserve independent power layer and GND layer






    XILINX VITIS-AI DPU

    AI Recognition Detection, Depth Computing Learning


    Intelligent identification and detection, image and video processing, security monitoring, machine vision, fire monitoring,
    traffic safety, smart construction site, smart hotel, smart agriculture, Internet of Things

    Vehicle Identification

    Infrared Vehicle Identification


    Pedestrian recognition

    Indoor Person Recognition

    Fire detection

    Helmet detection

    Concrete defect detection

    PCB defect detection


    Super Combination with Mali™-400 MP2 GPU, 64bit DDR4 RAM

    Industiral Grade Chip Dual ARM Application Processor

    Quad Core ARM Cortex-A53, 1.333GHz; Dual Core  Cortex™-R5, 533MHz; PS 4GB DDR4, 64bit; PL 1GB DDR4, 64bit



    Rich extension interface

    High-Speed Transmission

    Deep Learning, AI Computing, Video Processing High-Speed Data Transmission Processing


    Core Board + Carrier Board Customers Can Directly Use the Core Board in their Design

    Rich Interfaces in the Carrier board. Standard FMC HPC Interface, SFP Interface x2, NVME M.2 Interface, DP Interface, MIPI Camera Interface, USB 3.0 x4, USB Uart x2, Gigabit Ethernet x2, HDMI Input / Output Interface SD Card Slot, CAN Bus Interface x2, RS485 Bus Interface x2 Apply to AI Intelligence, Cloud Computing, Deep Learning, Network Communication, High-Speed Data Transmission, Video Image Processing and Industrial Control

    High-Speed Data Transmission

    Support PCIe 3.0 x2 Standard

    Single Channel Communication Rate up to 8GBaud


    SFP Optical fiber interface

    SFP Transmission Communication

    Receiving and Transmitting Speed up to 12.5Gb/s



    HD Video Concept Design

    H.264 / H.265 Video Codec

    Multimedia, Automotive ADAS, Surveillance and other Embedded Vision Applications


      Encode and Decode up to 4Kx2K (60fps) Video at the same time

    Intelligent Identification, Medical Security Vehicle Digital, Industrial Control, Smart Grid

    Video Image Collection Demo Camera Acquisition System

    MIPI Camera Module AN5641 On-Board Demo

       The MIP Camera Module AN5641 for Video Capture and Displays it on the Monitor through the Mini DP Interface


    The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.

    Alinx Electronic Limited 沪ICP备13046728号
