XILINX Artix-7 PCIE SFP FPGA Development Board XC7A35T


  • Model

    AX7A035/ AX7A035B
  • Email

  • Ean

  • Price

    $ 211

Notice for purchase:

This series of development boards include AX7A035 and AX7A035B

Only the Ethernet interface chips of the expansion board are different, and the functions are the same.

The two models will be delivered randomly according to the inventory, please distinguish them according to the QR code label.


Xilinx Artix-7FPGA Development Board

PCIe 2.0, 2x SFP, HDMI Input / Output

Apply to PCIe Communication and Data Processing Video Image Transmission and Processing Optical Fiber Communication


Techinal Support

Supporting Verilog HDL Demos and Docuemnts, All Doucments Saved in Dropbox, after buy the board, email to get it.

00. Vivado 2017.4 Installation
01. LED water lamp experiment and simulation in vivado
02. Key detection experiment in Vivado
03. PLL Experiment in Vivado
04. Serial port Transmitting and Receiving experiment
05. Key debounce experiment
06. I2C Interface EEPROM Experiment
07. SD Card Read and Write Experiment
08. HDMI Test Experiment
09. DDR3 Read Write and Simulation Experiment
10. Recording and playback Experiment of AN831 Module
11. SD Card Music Player Experiment
12. Character Display Experiment
13. SD Card Read BMP Picture Display Experiment
14. OV5640 Camera Display Experiment
15. SOBEL Edge Detection Experiment
16. AD9238 Waveform Dispaly Experiment

17. AD7606 Waveform Display Experiment
18. AD / DA Testing Experiment
19. AD9767 Waveform Display Experiment-Dual channel Sine Wave Experiment
20. AD9767 Waveform Display Experiment-Dual channel Triangle Wave Experiment
21. GTX Fiber Optic Communication IBERT Testing Experiment
22. AD9238 Chip Ethernet Transmission
23. AD7606 Chip Ethernet Transmission Experiment
24. AD9280 Chip Ethernet Communication
25. Gigabit Ethernet Video Transmission Experiment
26. GTP Fiber Optic Communication IBERT Testing Experiment
27. Video Image GTP Fiber Optic Communication Testing Experiment
28. PCIe Speed Test Experiment
29. PCIe HDMI Input Experiment
30. PCIe HDMI Output Experiment
31. PCIe xdma Interface Experiment

Product Package


FPGA Board

AN9767 Collection Package

AN706 Collection Package

AN9238 Collection Package

Video Package

Luxury Package

FPGA Board

USB Downloader




Binocular Camera

4.3-inch LCD

Supporting Modules in the Package, Click to Learn More


Dual-Channels DA Module


8-Channels AD Module


Dual-Channel DA Module


Binocular Camera Module


LCD Screen

key Features

·Core Board SOM

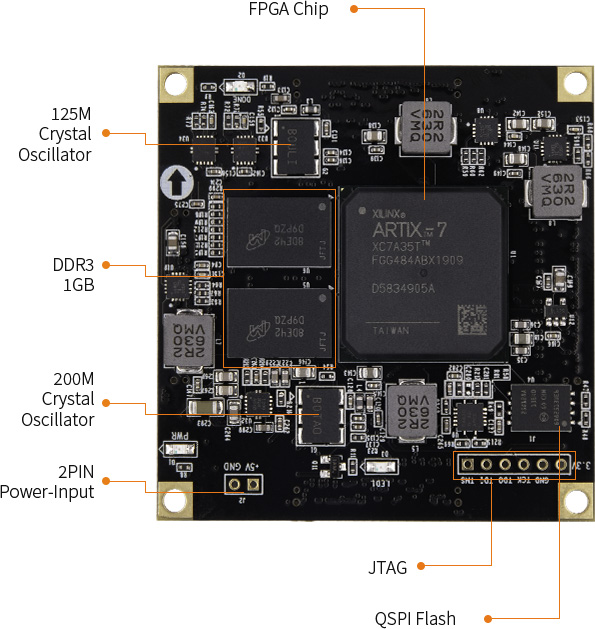

AC7A035 EN.jpg

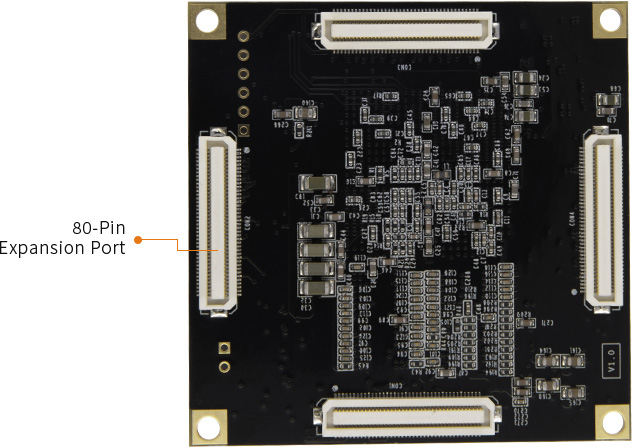

AC7A035 200 ENjpg.jpg

*Core Board, Click to Purchase >>

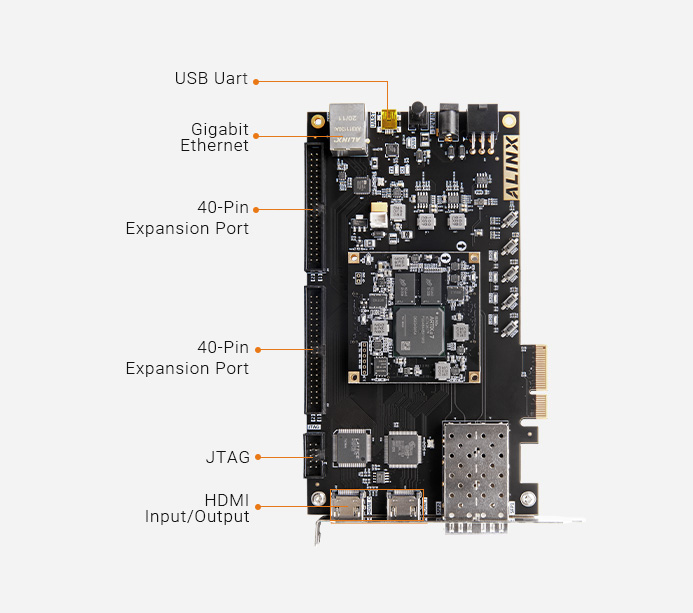

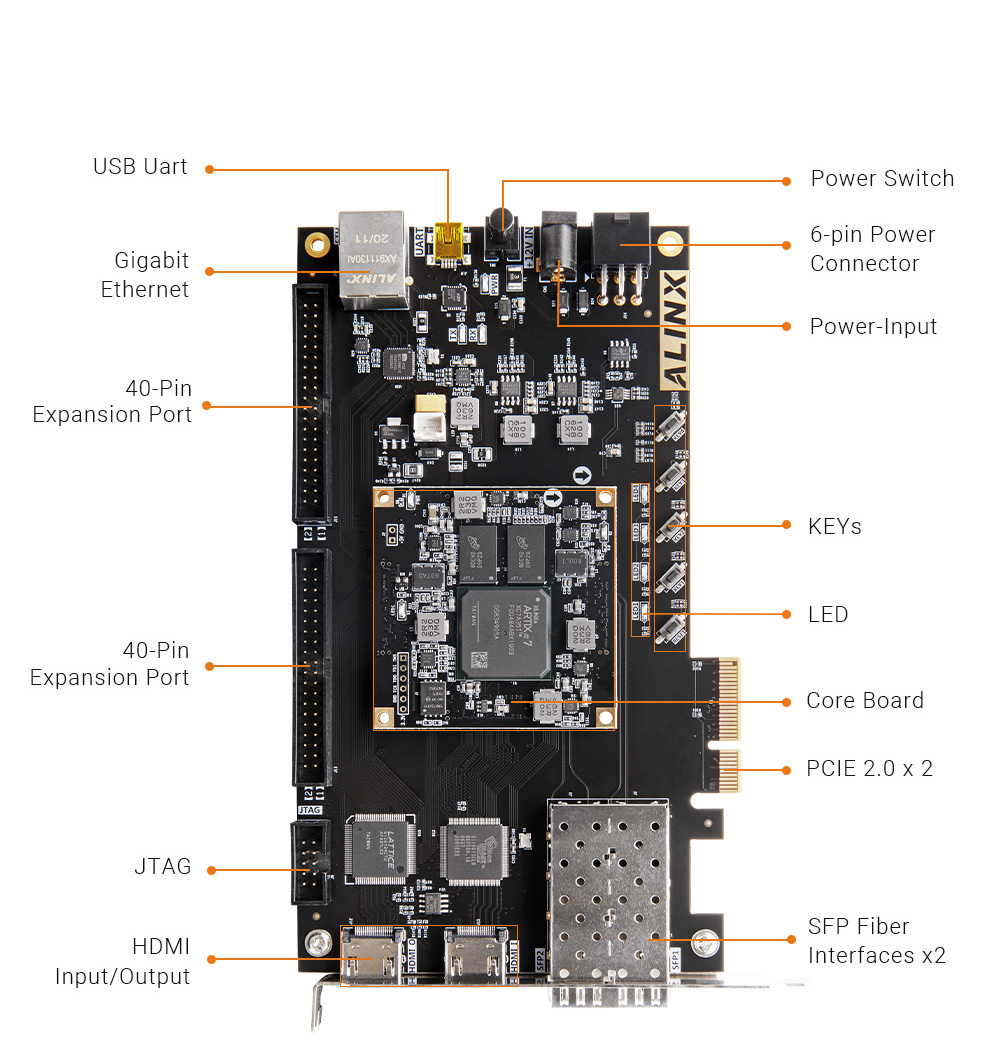

·FPGA Board


Product Parameters

Core Board Parameters



Logic Cells


Look Up Tables ( LUTs )


CLB Flip-Flops


Block RAM




Expansion IOS

146 IOs( 3.3V Level )

Speed Grades


Chip Level

Industrial Grade

Working Temperature


PCIe Gen2



12bit, 1Mbps AD

Interface and Function


2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps

QSPI Flash

128Mbit, Used as FPGA User Data Storage

Crystal Oscillator

200MHz Provide Stable Clock Source for the System
125MHz Provide Stable Clock Source Input for the GTX transceiver


4 GTP, each up to 6.6Gb/s, Used for SFP and PCIe Data Communication

PCIe2.0 Interface

Provides a Standard PCIe 2.0 High-Speed Data Transmission Interface Single-Channel Communication Rate up to 5GBaud

SFP x2

The Receiving and Transmitting speed of Each Channel is up to 6.6Gb/s

Gigabit Ethernet

10 / 100M / 1000M Ethernet with RJ-45 Interfaces for Data Exchange


10-pin 0.1-inch Standard JTAG Port for Programs Debug and Download

HDMI input / Output

HDMI Input and Output Interface, Supports 1080@60Hz, 3D Output

USB Uart

Used for Serial Communication with PC or External Devices


EEPROM 24LC04 with IIC Interface On-Board

SD Card Slot

1 Micro SD Card Slot, Support ted SD Mode and SPI Mode


5 User LEDs( 1 LED in Core Board, 4 LEDs in the Carrier Board )


4 User Keys, 1 Reset Key

40-Pin Expansion Ports

Two 40-Pin Expansion Ports ( 0.1 inch Pitch ) Can be Connect with Various ALINX Modules ( Binocular Camera Module, TFT LCD Screen, Camera, AD / DA and Other Modules )

Power Supply Parameters

Voltage Input

+12V DC

Current Input

Max. Current 5A

Package List

FPGA Board


Heat Sink


Mini USB Cable


USB Downloader Cable

1 Set

12V Power Adapter


PCIe Fence


Structure Size

Size Dimension

Core Board 2.36 inch x 2.36 inch, Carrier Board 7.40 inch x 4.17 inch

Number of Layers

10-Layer Core Board PCB, 6-Layer Carrier Board PCB


High-Speed Data Transmission

2x SFP Optical Fiber Interfaces

Industrial Ethernet, Video processing and transmission Optical Fiber Communication, Data transfer exchange


High-Speed SFP Video Transmission

SFP Video Transmission Demo

Expansion Interface Connects Binocular Camera Module Realize SPF Video Transmission


The FPGA Development Board Collects Video Images through the Camera Module, and Transmits it to another FPGA Development Board through the SFP Interface. After the SFP Interface Receives the Data, Displayed it to the Monitor through the HDMI Interface.


Optical Transceiver Communication Eye Diagram

Hdmi Input And Output

Verify PCIE Dedicated Board

Verify PCIE Solutions and Accelerate PCIE Development


The video signal is collected through the HDMI input interface uploaded to the computer through the PCIE interface, and the upper computer displays the collected video image in real time


The Host Computer Grabs the Computer Desktop, and Transmits it to the FPGA through the PCIE Interface. The FPGA Outputs through the HDMI Interface, and the Monitor Displays in Real Time

PCIE Read And Write Test

PCIE High-Speed Data Transmission

Meet Various PCIe High-Speed Data Transmission, Video Image Processing and Industrial Control Requirements


Binocular Camera Module Collection

Camera Acquisition System

Intelligent Identification, Medical Security Vehicle Digital, Industrial Control, Smart Grid


The Binocular Camera Module AN5642 for Video Capture, and Displays it on the Monitor through the HDMI Interface of the FPGA Development Board, to Realize Display Simultaneously.

Data Collection Display

Signal Data Acquisition System

AN9767 / AN706 Module On-Board Demo


*The Signal Source Output Signal is Connected to the AN9767 Module, and the Waveform Signal is Displayed through the Oscilloscope
*The Signal Source Output Signal is Connected to the AN706 Module, Run the System to Draw the Waveform Data, and is Displayed to the Monitor through the HDMI Interface of the FPGA Development Board

The warranty period of all products sold is 12 months, of which FPGA chips and LCD screens are wearing parts and are not covered by the warranty. All accessories and gifts are not covered under warranty.
